    Guide T120H Portable IR Thermal Imager 120x90 For Fever Detection

    Ask Lasest Price
    Brand Name : GUIDE
    Model Number : T120H
    Certification : CE, RoHS, FCC
    Price : Negotiable
    Payment Terms : TT
    Supply Ability : 3000 Sets/Month
    Delivery Time : 5-7 Working Days
    • Product Details
    • Company Profile

    Guide T120H Portable IR Thermal Imager 120x90 For Fever Detection

    Portable IR thermal imager thermal imaging camera for fever detection handheld


    Product Description

    GUIDE T120H Fever Screening Thermal Camera is a fast temperature detection tool, which can be used to detect human temperature from a safety distance with accuracy of ±0.5℃. It is an economical and practical thermal camera that could meet the needs of primary temperature screening well. With two intelligent temperature screening modes, GUIDE T120H is not only suitable for flexible temperature screening, but also can be deployed at the entrances and exits of the public area, which makes it an ideal device to improve the efficiency of epidemic prevention and protect public health.


    Product Features

    T120H Features


    Adopt the high sensitive WLP IR detector with independent intellectual property rights

    Fast temperature detection, automatic fever identification and alarm

    1-meter safe detection distance, low risk of infection, no disturb to detected person

    Support to save up to 100,000 images, can check temperature data

    TYPE-C interface, 2.5H fast charge, battery time up to 8H.

    Compact and portable, suitable for mobile detection, also can be fixed by optional tripod

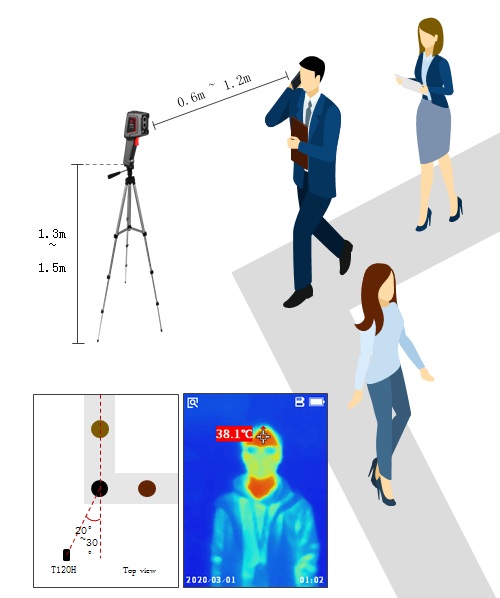

    T120H Suggested Scenario


    Single Mode

    In the real-time IR thermal image, ensure the “detected human face” is in the center of the frame.

    Press the trigger to freeze the image and display the temperature.

    Press the trigger again to save the image and return to the real-time IR thermal image.


    Fast Mode

    In the real-time IR thermal image, highest temp in the image will be auto-tracked.

    And once elevated temp detected, the image will be captured and saved automatically.


    Applications

    T120H IR Fever Warning Systems are suitable for large-scale temperature screening of airports, railway stations and other high traffic public places to control and reduce the spread of virus with fever symptom.


    Specifications
    T120H
    CategoryItemSpecification
    IR DetectorIR resolution120*90@17μm
    Detector typeUncooled Vox/7.5~14μm
    Frame Rate25HZ
    NETD60mk
    Focal Length/F#2.28mm/F1.13
    FOV50°x38°
    IFOV7.6mrad
    FocusFocus-free
    Image DisplayDisplay type2.4inch LCD display
    Display Resolution240*320
    Image ModeIR Image
    Temperature MeasurementFilter Range20℃-50℃
    Accuracy≤±0.5℃ (Ambient temperature 25 ℃, target distance 1m, target temperature 32 ℃ ~ 42 ℃, )
    Measurement PointCentral point
    AlarmOver-temperature alarm, color prompt (preset value: 37.3℃)
    Image StorageStorage MediaTF card (maximum support: 32G)
    Image FormatFull Radiometric (JPG) (120*90)
    Communication ModeUSBTYPE-C, TF Card slot
    Tripod InterfaceYES
    Power SystemBattery TypeRechargeable Li-ion battery
    Operating Time>8H
    Charging TimeDC,≤2.5H
    Enviromental ParameterOperating Temperature-10℃~50℃
    Storage Temperature-40℃~70℃
    EncapsulationIP54,2-meter Drop Test
    OthersCertificationCE/ROHS/FCC
    Weight350g
    Dimension194mm *61.5mm *76mm
    Standard AccessoriesWristband,Quick start Guide,Charging adapter, Plug, USB Type-C cable,Download card,16G TF Card

    GUIDE T120H Fever Screening Thermal Camera.pdf

    Portable IR thermal imager thermal imaging camera for fever detection handheld
