    External Smartphone Infrared Camera Thermometer For IOS

    Ask Lasest Price
    Brand Name : GUIDE
    Model Number : CB360
    Certification : CE, RoHS, FCC
    Price : Negotiable
    Payment Terms : TT
    Supply Ability : 3000 Sets/Month
    Delivery Time : 5-7 Working Days
    • Product Details
    • Company Profile

    External Smartphone Infrared Camera Thermometer For IOS

    Mobile Phone Thermal Imaging Infrared Camera Thermometer External Infrared Thermal Imager For Android and IOS


    Product Description

    GUIDE MobIR Air CB360 Fever Scanner is a simple, efficient and affordable thermal imaging camera to turn your smartphone into a temperature detector instantly. MobIR Air CB360 can detect the human temperature from 1.2 meters away and automatically sound an alarm while identifying the elevated temperature, which helps deliver efficient and accurate temperature screening and make us safer at public area.


    Product Features

    üSafe: temperature screening from 1.2 meters away, ensure social distance and avoid cross-infection

    üEfficient: scan and show the temperature instantly

    üSimple: plug and play, easy to use

    üAutomatic: Sound an alarm and capture an image while identifying the elevated temperature

    üImaging enhancement: GUIDE’s Unique MIF (Multi-spectral Imaging Fusion) technology, enhance the thermal image by the camera of smartphone

    üImage data can be reported and shared by social media



    Specification

    CategoryItemSpecifications
    IR DetectorIR Resolution120×90 @17μm WLP
    Spectral Range8~14μm
    LensFocal Length2.3mm F1.1
    Field of View (FOV)50°±1°
    FocusFocus-free
    ImagingFrame Rate25Hz
    FunctionsTemperature Measurement AccuracyTemperature measuring from 0.5 ~ 1.2 meters;, accuracy≤ ± 0.5 ℃, target temperature range 28 ℃ ~ 40 ℃
    Multi-spectral Imaging FusionAdd visible details to the thermal image by the camera of smartphone
    Image Display/CaptureSaved as radiometric JPEG images

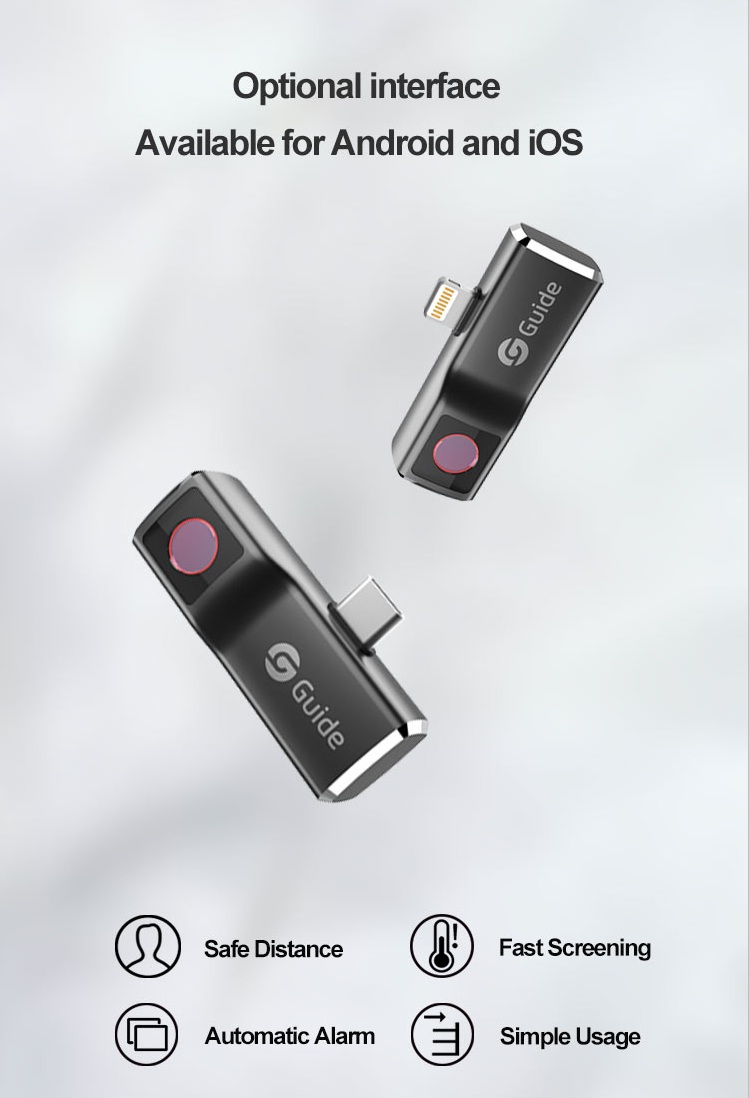

    InterfaceCommunication Power Supply InterfaceUSB Type-C (Android); Lightning (IOS)
    Powwer SupplyInput Voltage5V,Powered by smartphone
    Typical Power Consumption≤150mW
    Environmental AdaptabilityOperating Temperature0℃-40℃
    Storage Temperature-10℃-55℃
    Drop Test1-meter drop test
    OthersWeightNet weight -20g,Gross weight- 80g
    Dimensions51mm×18mm×15.6mm (L x W x H) (excl.USB interface)
    Package Dimensions102mm×72mm×38mm (L x W x H)
    CertificationsRoHS,CE,FCC
    Standard AccessoriesFever Scanner, Quick Start Guide, Warranty Card

    CB360 Fever Scanner for Smartphone.pdf
