400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight

    Buy cheap 400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight from wholesalers

    Buy cheap 400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight from wholesalers
    • Buy cheap 400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight from wholesalers

    400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight

    Ask Lasest Price
    Brand Name : Guide
    Model Number : TA435
    Certification : CE, Rohs, FCC
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 1000 Sets/Months
    Delivery Time : 7-10 Working Days
    • Product Details
    • Company Profile

    400×300 17μM 50Hz Thermal Imaging Scope Night Vision Clip On Sight

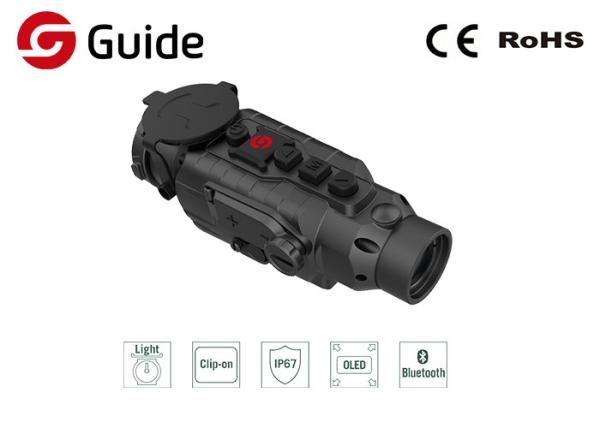

    Guide TA435 Day Night System Thermal Clip-on Sight with 400×300 17μm 50Hz


    Product Description

    Guide TA435 Thermal Clip-on Weapon Sight is a truly versatile and convenient thermal imaging scope with increased options and functionality. You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience. No need re-zero, no need remove your daytime scope. Just "clip on" right in front of the daytime optics.


    Application


    Application of Guide TA435 Thermal Clip-on Weapon Sight

    Hunting

    Outdoor observation and aiming

    Wild Adventure

    Law Enforcement

    Security, search and rescue


    Features and Benefits


    Features and benifits of Guide TA435 Thermal Clip-on Weapon Sight


    1. Ergonomic design, easy operation
    2. Single hand-operation with a roller button
    3. Shutter calibration technique is available to hide for observation and aim at
    4. Can work in -40℃
    5. Accurate thermal sighting, personal visual experience
    6. Picture in Picture’ function, 2x zoom
    7. Wi-Fi video transfer
    8. Palette image display can adjust its brightness by external light intensity


    Simple & Adaptable: Switchover among five scene modes by one button, truly realizing all-weather environment self-adaptation

    Convenient: You neither have to re-zero your scope, nor do you have to remove your regular daytime scope in order to install this one. Just "clips on" right in front of it.

    Versatile: You can use it as a dedicated thermal scope or clipped on in front of your regular day time scope for high quality night vision experience.

    Compact and lightweight: ≤400g
    • OLED color eyepiece display, capable of displaying images in various color modes
    • Waterproof IP67
    • Super sound-off and bright light Cut-off System, prevent exposure
    • Optional Bluetooth remote controller for easy operation
    • Quick mount and no-shot zero (recommended magnification of the day scope/sight : 2-4X)


    Specification

    Detector
    Resolution400×300@17μm
    Spectral Range8μm~14μm
    NETD≤50mk@25℃ /F1.0
    Focus lens
    Focal Length35mm F1.2
    FocusingManual focus
    FOV10.66°×8.0°
    Image Processing
    Frame Rate50Hz(PAL)/60Hz(NSTC)
    Digital Zoom2×,4×
    Auto TrackingHotspot track
    Calibration

    Automatic calibration/ Manual calibration (shutter) /Manual

    scene compensation

    Color PalettesBlack hot, white hot, red hot, green hot
    Contrast/BrightnessAdjustable
    Power Systems
    BatteryCR123A×2/ICR16340×2
    ChargingOn External charger
    Working TimeContinuous Operating over 3 hours@25℃
    Interface
    4-Pin LEMO InterfaceAnalog&video output
    Display system
    OLEDColorful 0.39 inch OLED screen 1024×768
    Pupil Distance10mm
    Pupil Caliber20mm
    Video FormatPAL/NTSC
    Digital Zoom1
    View FinderMonocular display(×2) ±5 adjustable diopter
    Environment parameter
    Operating Temperature-30℃-50℃
    StorageTemperature-45℃-70℃
    HumidityWorking and storage10% ~ 95%, Non condensing
    Impact500G/1ms
    IP levelIP67
    CertificateRoHS Certificate/CE Certificate/FCC Certificate
    Physical Characteristics
    Weight≤400g
    Size150mm×52mm×57mm
    Package
    StandardThermal infrared imager/User manual/Blinder/Warranty

    Optional

    Adapter ring/External eyepiece/ CR123A×2(unrechargeable)battery/ICR16340×2(rechargeable) battery/Charger/Bluetooth remote controller/Lemo video

    cable/Picatinny rail

    Cover ring adapterA:Compatible with 38/40/42/44/46mm; Cover ring adapterB:Compatible with 48/50/52/54mm; Cover ring adapterC:Compatible with 56/58/60/62/64mm;
    Detection Range
    Human:1.8m×0.5m1000m
    Vehicle:2.3m×2.3m2400m
    Recognition Range
    Human:1.8m×0.5m500m
    Vehicle:2.3m×2.3m1000m
